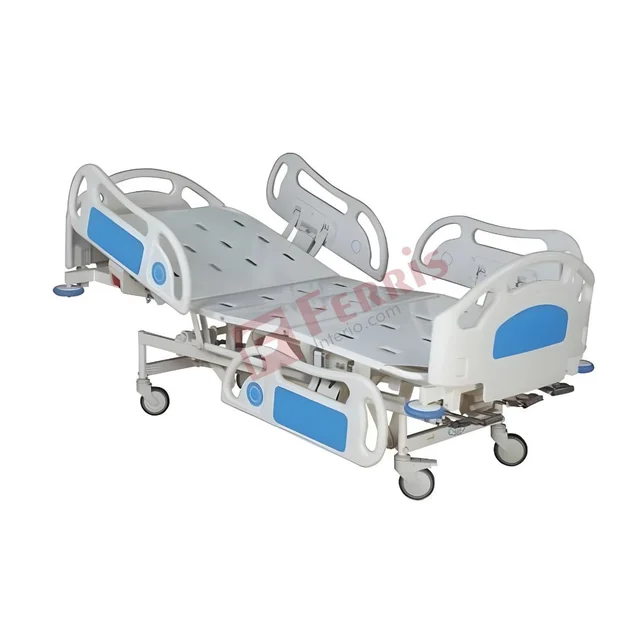

ICU BED MECHANICAL SUPREME | 4-CRANK SYSTEM | ABS RAILS & ANGLE INDICATORS (FHB003)
₹ 67,200 / Piece
₹ 84,000
20%
₹ 79,296 / Piece
Inclusive of Tax
Highlights
Designed for durability and ease of access, this 4-Function Mechanical ICU Bed is an excellent choice for hospitals requiring manual operation. It features a reliable 4-Crank Mechanism at the foot-end for adjusting Back Rest, Knee Rest, Height, and Trendelenburg positions. Unlike standard ABS models, this bed comes with SS framed head and foot bows with laminated panels for a premium aesthetic, along with SS/MS Collapsible side railings for patient safety.
Advanced Mechanical Operation (4-Function) The Mechanical Supreme (FHB003) offers full functional control without the need for electricity. It operates via 4 separate crank mechanisms located at the foot-end, giving medical staff precise manual control over all critical positions:
-
High – Low Adjustment: Significant height range from 600mm to 800mm for optimal patient care and transfer.
-
Tilt Functions: Supports Trendelenburg and Reverse Trendelenburg (0-8 degrees) via crank operation.
-
Comfort Control: Smooth manual adjustment for Back Rest (0-75°) and Knee Rest (0-35°).
Premium Design & Build
-
Aesthetics: Features detachable ABS Head and Foot Bows that are locked securely and provide a soothing, professional look.
-
Structure: The mattress area is divided into 4 sections made of durable CRCA Sheet. All metal components are pre-treated and epoxy powder coated to prevent rust.
Enhanced Safety Features
-
Smart Rails: Includes 4 pieces of individual ABS side rails, each equipped with angle indicators—a rare premium feature in mechanical beds that helps track the bed's inclination.
-
Impact Protection: Corner PU buffers absorb shocks to protect the bed structure during transport.
-
Stability: Moves on 125mm diameter castors with a diagonal locking mechanism for safety.
Included Accessories
-
Saline Stand: Provisions available at all four corners.
Technical Specifications (Model FHB003)
| Feature | Specification |
| Model Number | FHB003 |
| Product Name | ICU Bed Mechanical Supreme |
| Operation Type | Mechanical (4 Separate Crank Mechanisms) |
| Side Rails | ABS Rails with Angle Indicator |
| Frame Material | CRCA Sheet & Tube (Epoxy Powder Coated) |
| Bed Size (Approx) | 2030 L x 900 W |
| Height Range | 600 mm - 800 mm |
| Back Rest Tilt | 0 - 75 Degrees |
| Knee Rest Tilt | 0 - 35 Degrees |
| Trendelenburg | 0 - 8 Degrees (Forward & Reverse) |
| Castors | 125 mm Dia with Diagonal Locking |
