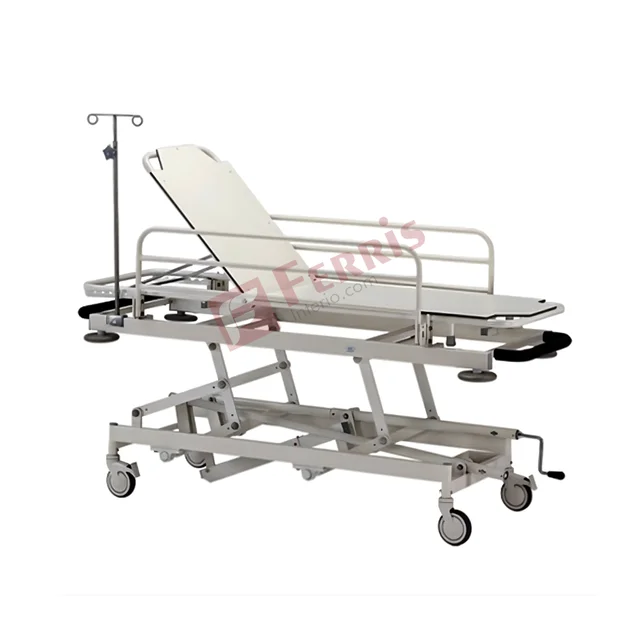

The Emergency Recovery Trolley (Model: FHF 010) is designed to provide reliable patient support during emergency care, transportation, and recovery procedures in hospitals and healthcare facilities.

The trolley frame is constructed from rectangular CRCA pipes, ensuring a strong and durable structure. It is fitted with stainless steel swing-down side railings for patient safety and a removable radiolucent top, allowing compatibility with diagnostic procedures such as X-rays without moving the patient.

The trolley features a two-section top with a ratchet mechanism that allows easy adjustment of the backrest for improved patient comfort. It also includes a Trendelenburg and Reverse Trendelenburg positioning system, which can be smoothly operated using a pneumatic pump, allowing caregivers to adjust the patient's position quickly during emergency situations.

For easy movement within hospital premises, the trolley is equipped with 125 mm diameter castor wheels with diagonal locking, ensuring smooth mobility and stable positioning when required.

Additional features include oxygen cylinder holder and stainless steel IV stand, making it suitable for critical patient care during transport.

The entire metal structure is pre-treated and epoxy powder coated, providing excellent resistance against corrosion and ensuring long-lasting durability in medical environments.

Key Specifications

• Model: FHF 010

• Type: Emergency Recovery Trolley

• Frame Material: Rectangular CRCA Pipes

• Top Section: 2 Section with Ratchet Backrest Adjustment

• Side Railings: SS Swing Down Safety Rails

• Mobility: 125 mm Castors with Diagonal Locking

• Positioning: Trendelenburg / Reverse Trendelenburg

• Adjustment System: Pneumatic Pump Mechanism

• Accessories: Oxygen Cylinder Holder & SS IV Stand

• Frame Finish: Epoxy Powder Coated

• Frame Size: 2100 mm (L) × 560 mm (W) × 650–950 mm (H)

Optional Variants:

• Also available in Complete Stainless Steel Construction

• Also available with High-Low Height Adjustment via Crank Mechanism
